特點
高效低噪音設計
UL認證
變速控制（0-10VDC）
3速恒定輸出應用

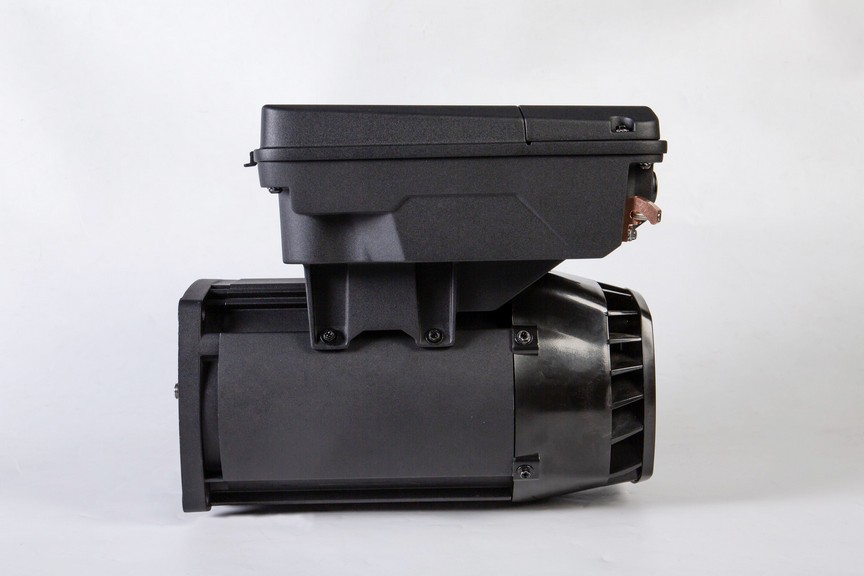

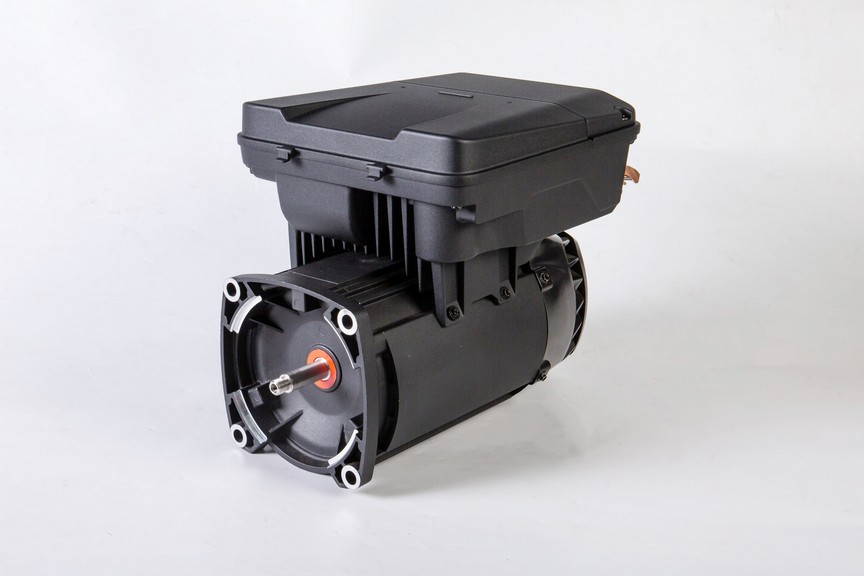

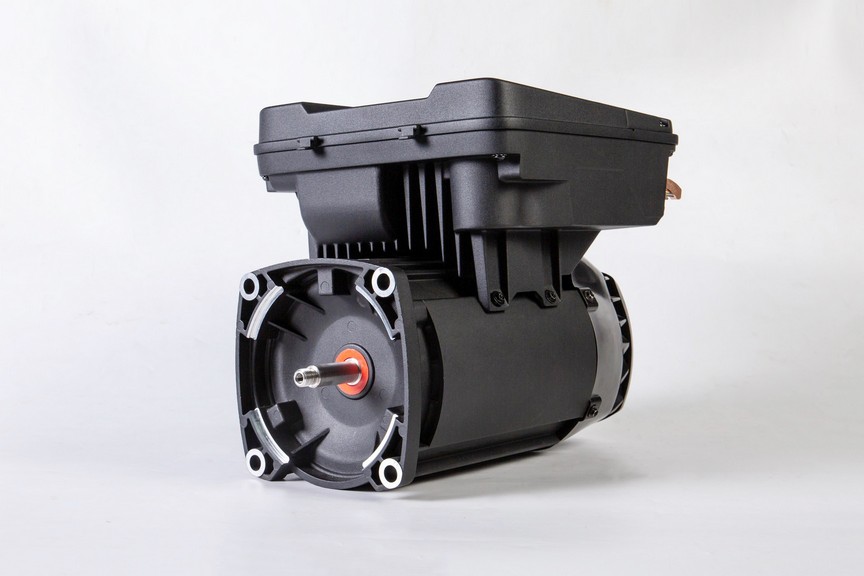

EC電機
EC電機
NO | Model | Volts | RPM (Max) | Output Power (W) | HZ | AMPS | Eff | OD (mm) | ROT |
1 | ESK120-8-245A1-A | 115 | 1550 | 245 | 50/60 | 4.3A | 85% | 123 | CCWLE |
2 | ESK94-8-50A1 | 115 | 1500 | 60 | 50/60 | 1.0A | 80% | 97 | CCWLE |
3 | EDK80 series A | 115 | 2800 | 30~90 | 50/60 | 1.5 | 70 | 83 | CW/CCW |
4 | EDK80 series B | 230 | 2800 | 30~90 | 50/60 | 0.75 | 70 | 83 | CW/CCW |
5 | EDK94 series A | 115 | 1600 | 30~150 | 50/60 | 3.0 | 75 | 98 | CW/CCW |
6 | EDK94 series B | 230 | 1600 | 30~150 | 50/60 | 1.5 | 75 | 98 | CW/CCW |
7 | EDK120 series A | 115 | 1600 | 90~245 | 50/60 | 5.0 | 80% | 123 | CW/CCW |
8 | EDK120 series B | 230 | 1600 | 90~245 | 50/60 | 3.0 | 80% | 123 | CW/CCW |
9 | EDK140 series A | 115 | 1500 | 185~350 | 50/60 | 8.0 | 85% | 143 | CW/CCW |
10 | EDK140 series B | 230 | 1500 | 185~550 | 50/60 | 4.5 | 85% | 143 | CW/CCW |
